AT-Mini Sand Filter

SKU S314T Categories , ,

The AT-Mini is designed for small above-ground pools and spas. The AT Mini includes a 4-position easy operation valve.





FEATURES

  • The filter tank is constructed from HDPE plastic material for durability and long life.
  • The top diffuser ensures an even distribution of water over the top of the sand media bed. All internal Pipin is 1.5″ dia. (50mm) to provide smooth, free-flowing performance.
  • The flange clamp design allows 360-degree rotation for easy installation.
  • Bottom drain plug for easy winterization or maintenance.

BACKWASH – For Cleaning accumulated debris in the sand bed
RINSE – Use after finishing the backwash cycle to ensure dirty water is rinsed out of the filter to waste
FILTER – For normal filtering and regular vacuuming
WINTER – For ease of winterizing

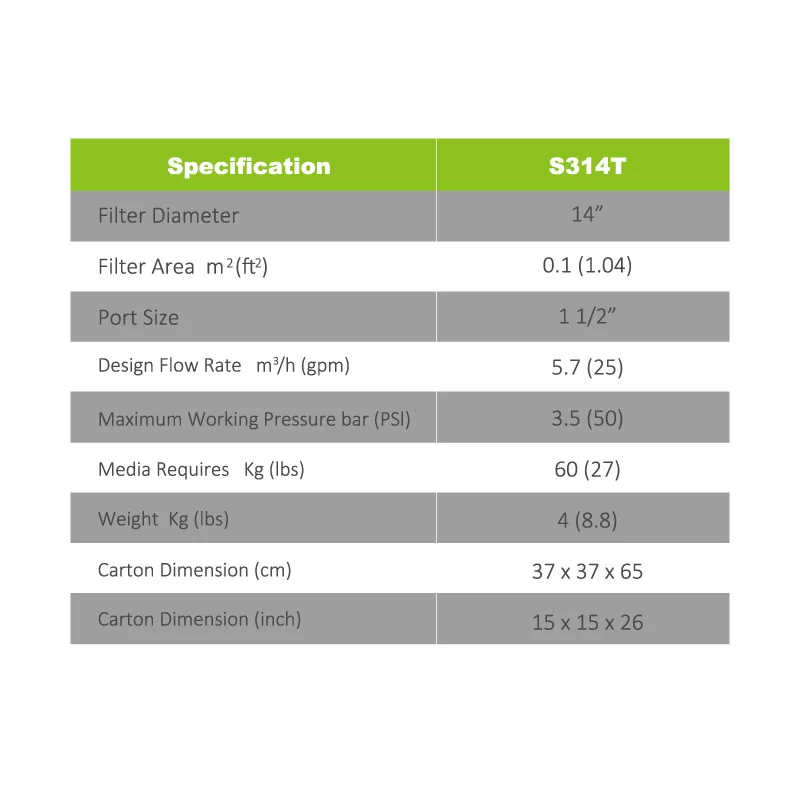

SPECIFICATIONS

reliant_at_mini_sand_filter_specification__800x800

DOWNLOADS

Reliant AT-Mini Sand Filter Manual Download
