BT Sand Filters
BT series is a professional-grade option for your pools with high-performance, corrosion-resistant sand filters that seamlessly combine superior flow characteristics and features with easy operation.
FEATURES
- The filter tank is constructed from HDPE.
- The top diffuser ensures an even distribution of water over the top of the sand media bed. All internal Pipin is 1.5″ dia. (50mm) to provide smooth, free-flowing performance.
- The flange clamp design allows 360-degree rotation for easy installation.
- Bottom drain plug for easy winterization or maintenance.
- Include 7 position multi-port valve.
BACKWASH – For Cleaning accumulated debris in the sand bed
RINSE – Use after finishing the backwash cycle to ensure dirty water is rinsed out of the filter to waste
WASTE – By-passes the filter for draining or lowering the pool water level and for vacuuming heavy debris directly to the waste line
RECIRCULATE – Water is recirculated through the valve, by-passing the filter
CLOSE – Shuts off the flow from the pump to the filter
FILTER – For normal filtering and regular vacuuming
WINTER – For ease of winterizing

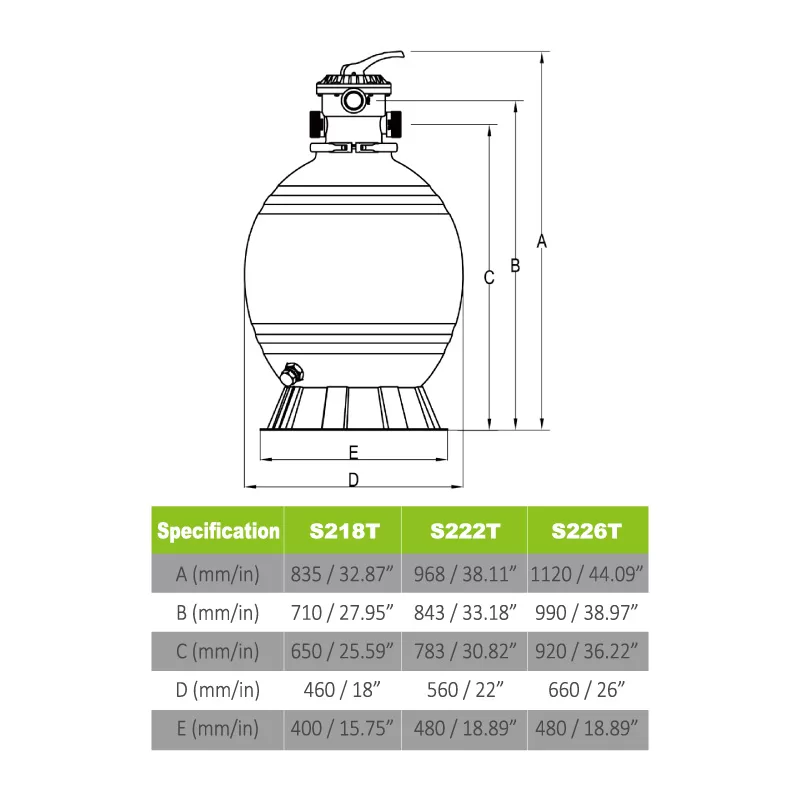

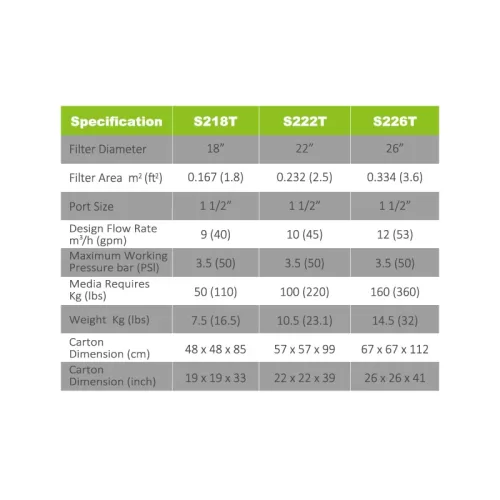

SPECIFICATIONS
DOWNLOADS
